Achieve the look of real textured timber in a light weight, fire rated aluminium.



Profiles perform well when tested to AS/NZ 1530.3 (spread of flame / index 0), AS/NZ 3837-1998 (result / Group 1) and ASTM E84 (Class A).  Meets the BCA Deemed to Satisfy Provisions C1.9 (e)(v) of the 2019 NCC (Volume 1 – covering class 2-9 buildings).



Profiles and Dimensions

Featured

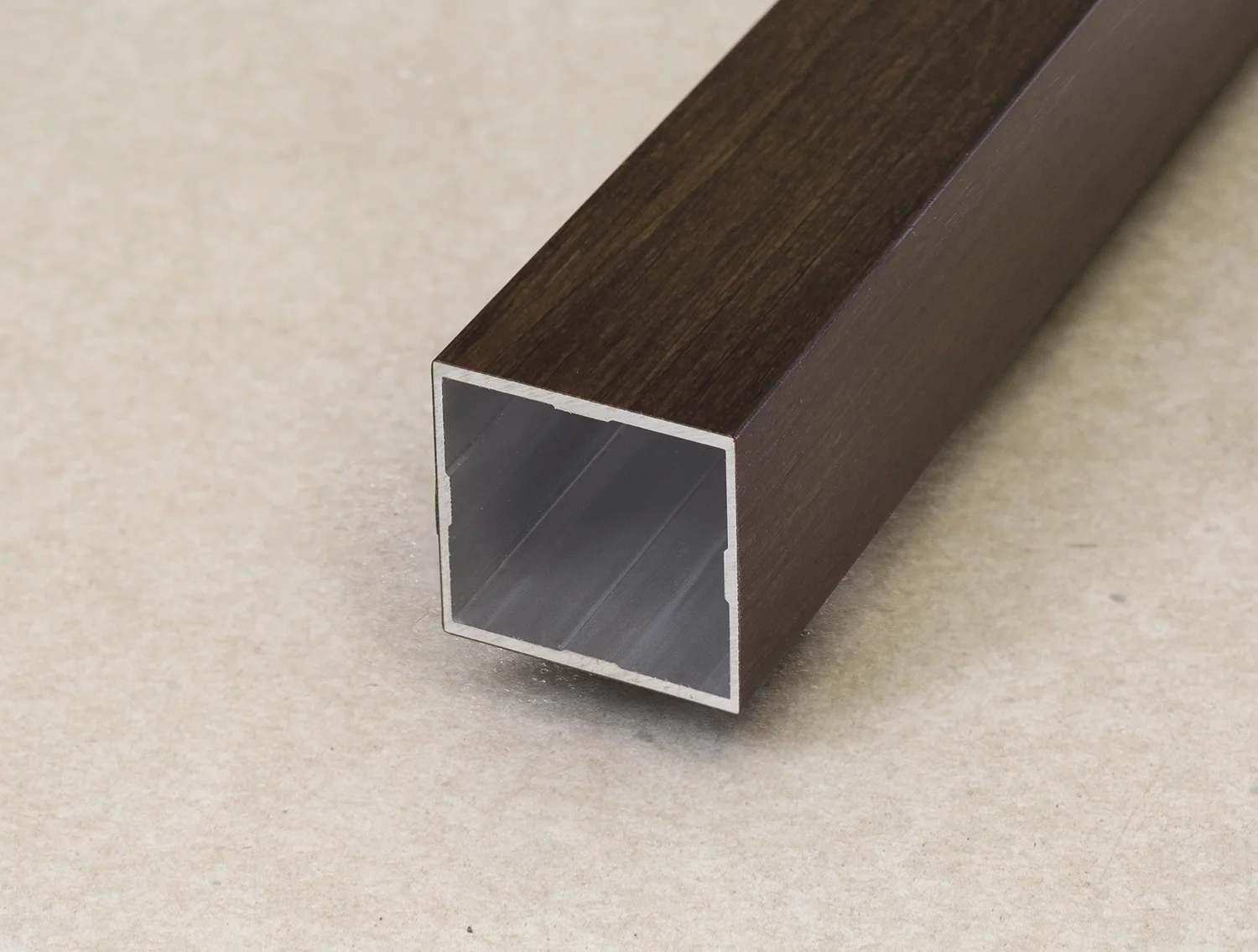

Koshi Cladding - Square
Koshi Cladding - Square

Standard Hollow Section
Square profile
20 x 20mm
40 x 40mm
60 x 60mm
75 x 75mm
85 x 85mm
100 x 100mm
120 x 120mm

Koshi Cladding - Rectangle
Koshi Cladding - Rectangle

Standard Hollow Section
Rectangle profile
20 x 40mm
30 x 50mm
30 x 60mm
30 x 85mm
50 x 100mm
50 x 150mm
85 x 170mm

Koshi Cladding - Plank
Koshi Cladding - Plank

Standard Hollow Section
Flat plank profile

w/ square edge
8 x 75mm
15 x 85mm
20 x 150mm

w/ round edge
13 x 120mm

Koshi Cladding - Wave Plank
Koshi Cladding - Wave Plank

Standard Hollow Section
Waved plank profile

w/ square edge
10 x 100mm
10 x 150mm

w/ round edge
20 x 180mm

Koshi Cladding - Round
Koshi Cladding - Round

Standard Hollow Section
Round profile (d)
22mm
30mm
40mm
60mm
80mm
90mm

Kabebari Cladding - Square
Kabebari Cladding - Square

Two Section Concealed Fix
20 x 20mm

Kabebari Cladding - Kogarana
Kabebari Cladding - Kogarana

Two Section Concealed Fix
24 x 27mm

Kabebari Cladding - Rectangle
Kabebari Cladding - Rectangle

Two Section Concealed Fix
20 x 20mm
24 x 27mm
30 x 30mm
30 x 50mm
30 x 85mm
50 x 50mm
50 x 100mm
100 x 100mm

Kabebari Cladding - Oki
Kabebari Cladding - Oki

Two Section Concealed Fix
100 x 100mm

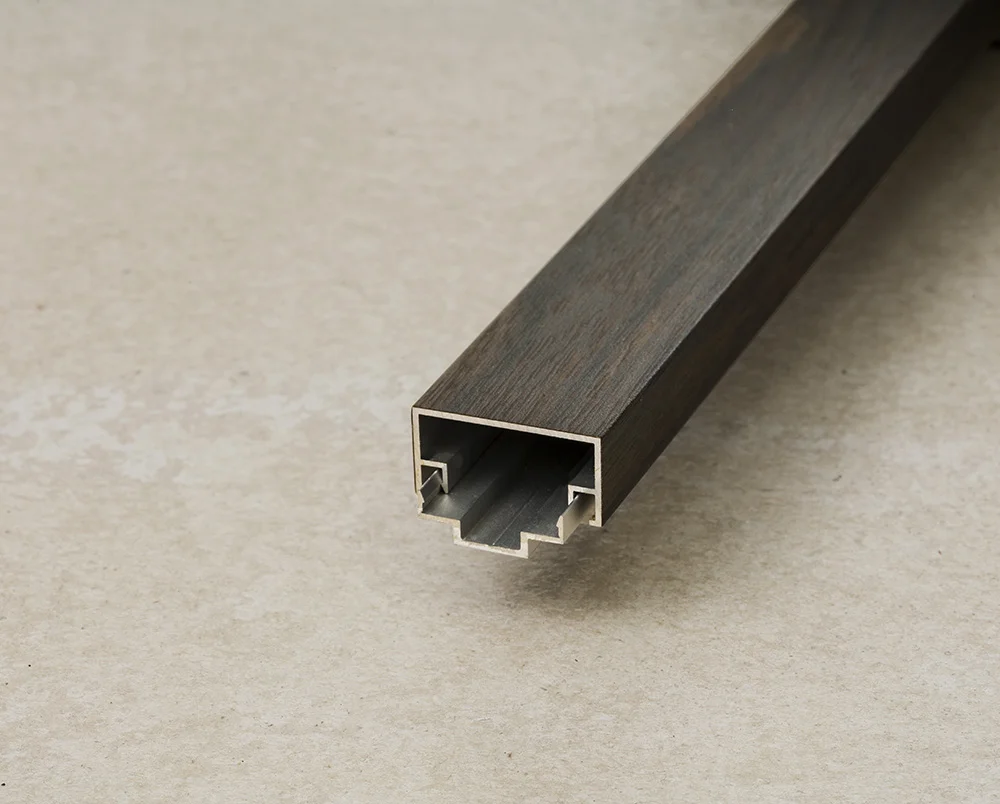

Kabebari Cladding - Slimline
Kabebari Cladding - Slimline

Two Section Concealed Fix
Low profile batten
30 x 15mm
30 x 18mm
40 x 20mm

Kabebari Cladding - Plank
Kabebari Cladding - Plank

Two Section Concealed Fix
Flat or waved plank profile
100 x 12mm

Kabebari Cladding - Nami Plank
Kabebari Cladding - Nami Plank

Two Section Concealed Fix
Wave plank profile
100 x 12mm

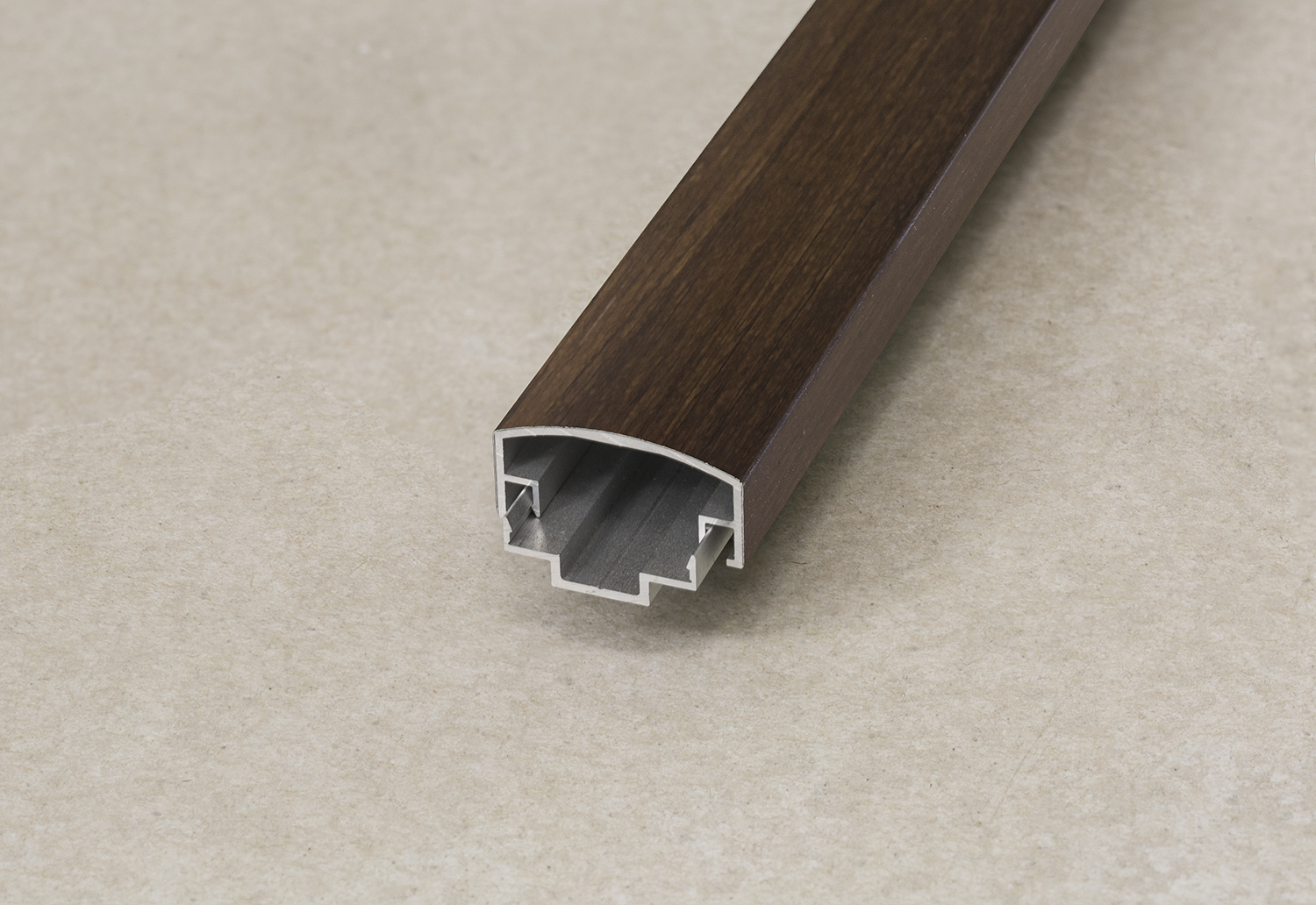

Kabebari Cladding - Curve
Kabebari Cladding - Curve

Two Section Concealed Fix
Slightly curved profile

w/ square edge
30 x 15mm

Kabebari Cladding - Round
Kabebari Cladding - Round

Two Section Concealed Fix
Semi-circle profile

single
22 x 15mm

double
44.5 x 15mm

Kabebari Cladding - Mikadzuki
Kabebari Cladding - Mikadzuki

Two Section Concealed Fix
Curved profile
44 x 15mm

Kabebari Cladding - Domu
Kabebari Cladding - Domu

Two Section Concealed Fix
90 x 42mm

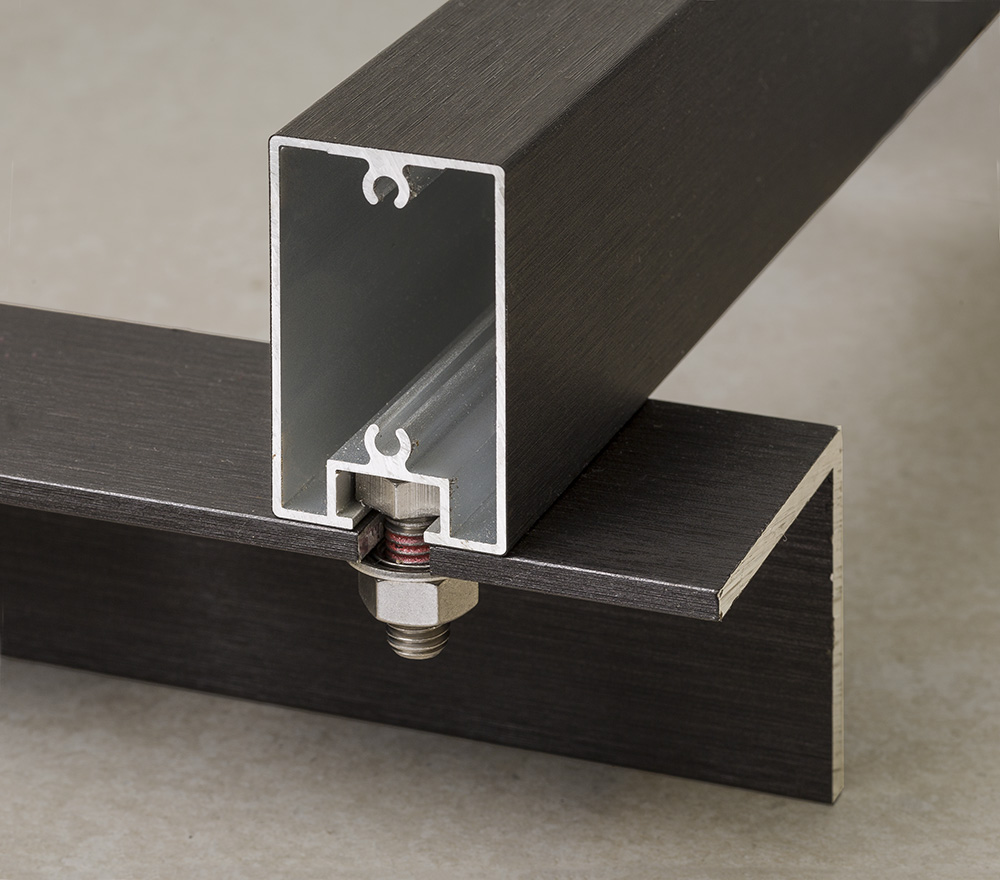

Mitzosuki Cladding
Mitzosuki Cladding

Bolt Fix Batten & L Bracket
Batten
30 x 50mm
30 x 60mm
40 x 100mm
50 x 100mm
60 x 30mm

Refer product specs for L bracket dimensions.

T2C Cladding
T2C Cladding

Section designed to pair with Standard Hollow Section Profiles
60x30mm

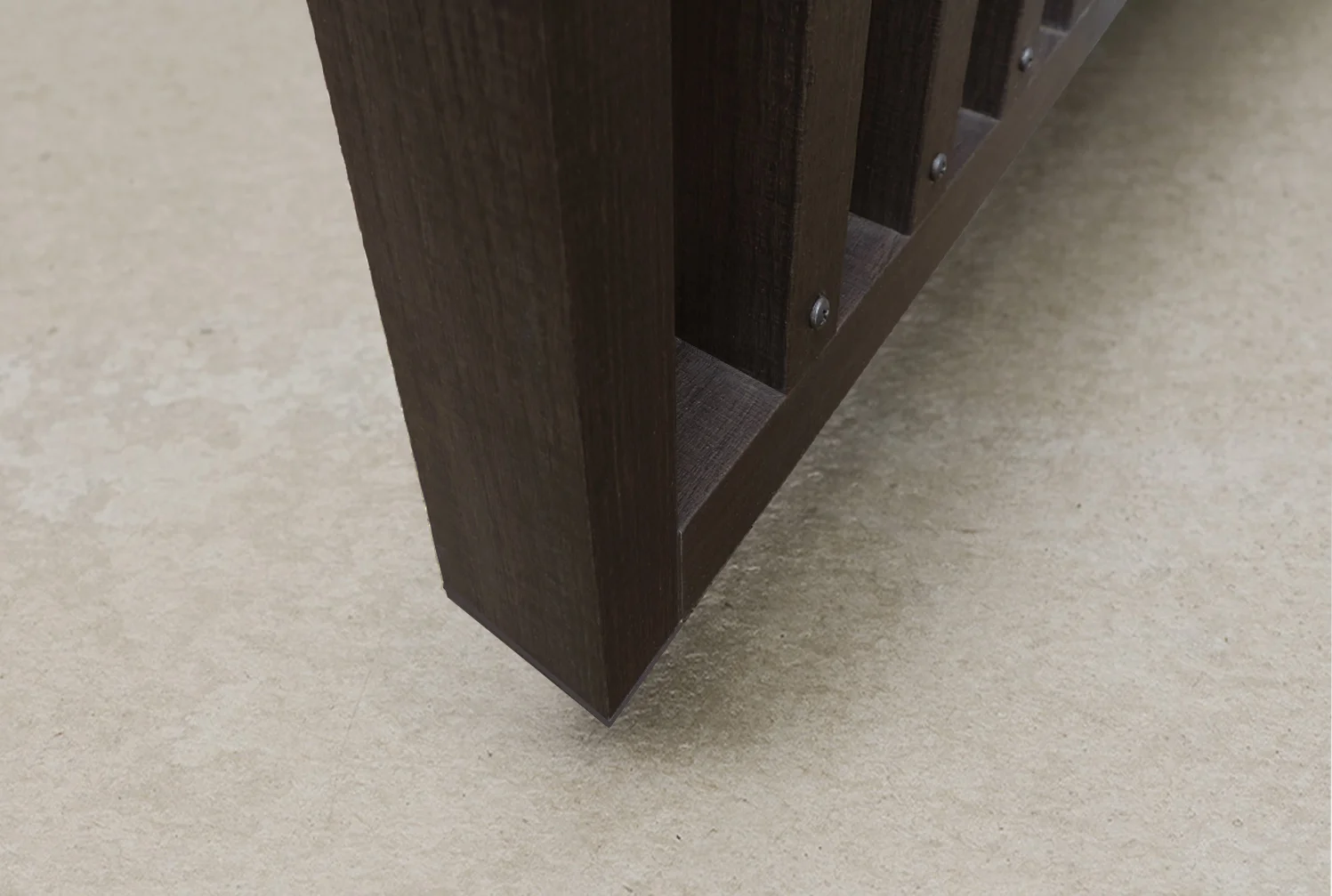

Koshi Screen Cladding - Prefabricated Framed Screens
Koshi Screen Cladding - Prefabricated Framed Screens

Standard size
1710 x 1975mm
/w 30 x 60 Koshi
50mm spacing.

Custom sizes available.
Check with Covet as to what is possible.

Doubuchi Screen Cladding - Prefabricated Frameless Screens
Doubuchi Screen Cladding - Prefabricated Frameless Screens

Doubuchi Section designed to pair with Koshi Standard Hollow Section Profiles
50 x 30mm

Custom screen sizes.
Check with Covet as to what is possible.

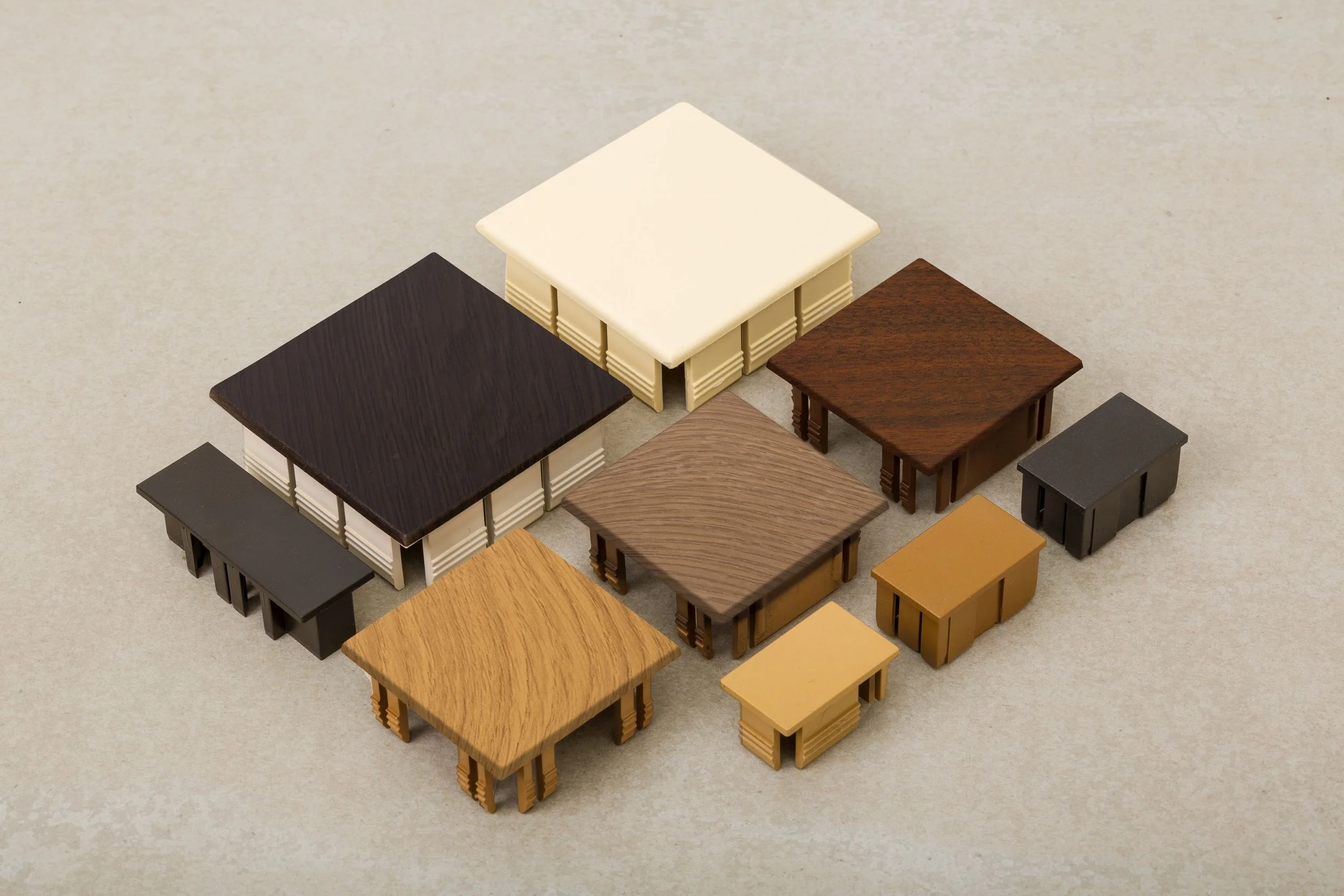

Ever Art Wood® End Caps
Ever Art Wood® End Caps

Several end cap finishes are available to suit our extensive range of Ever Art Wood® batten profiles. Choose from our standard colour coded ABS caps, painted aluminum caps for specific profiles, or upgrade to our premium ‘Moku’ wood grain end caps for when detail is everything.

Batten lengths are available in standard 4m or 6m lengths and cut to length.
For large quantities battens lengths can be made to order to reduce wastage and minimise cost.
All dimensions are width x depth unless otherwise indicated.

The Ever Art Wood® Palette

A palette created from actual timber species and metals delivers exceptional, photorealistic designs and textured effects.



* Denotes colours with texture.
Please note: screen reproduction for colour will not be exact. Always request samples.



Featured Projects

Featured EAW Batten Projects
883 Collins St Pool Amenities - Melbourne VIC
883 Collins St Pool Amenities - Melbourne VIC

Product:
Ever Art Wood® Kabebari 30x50 batten in Supuringu Oku to walls and ceiling.

Private Residence - Newport NSW
Private Residence - Newport NSW

Product:
Ever Art Wood® Kabebari concealed fix 30x85 battens, Ever Art Wood® Kabebari 12 x 100 planks to garage door.
As featured in:
- Vogue Exclusive: tour Jennifer Hawkins' waterfront retreat and
Vogue Living Australia, Jan/Feb 2018 Issue
- Habitus Living: Modernist Architecture And Australiana Collide

Dual Townhouse Development - Seaholme VIC
Dual Townhouse Development - Seaholme VIC

Product:
Prefabricated Ever Art Wood® Doubuchi screens to balconies and facades; Ever Art Wood® Kabebari 30x50 battens on garage doors.
